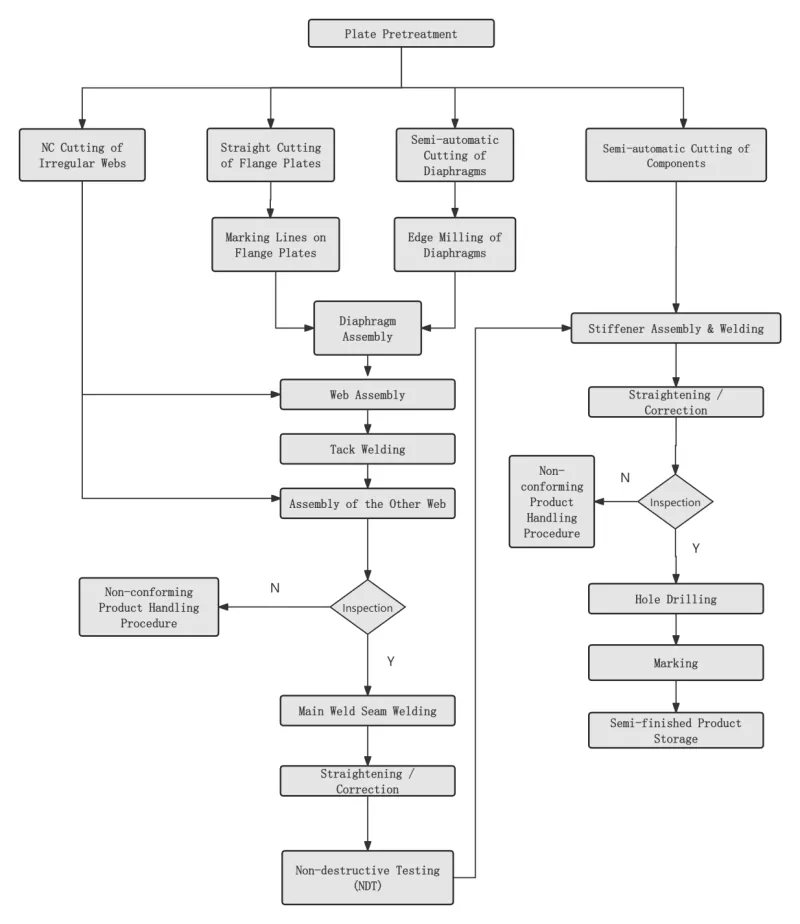

EIHE Steel Structure's Box Column Processing Flow & Engineering Application Zokwaniritsa

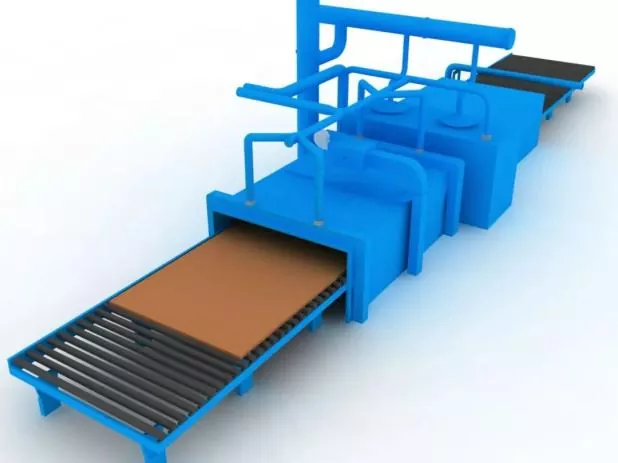

Khwerero 1 Kukonzekera Kwambiri Pamwamba pa Plate Plate

Kuchitika mogwirizana ndi kapangidwe kapena ndondomeko zofunika pamaso zitsulo mbale blanking.

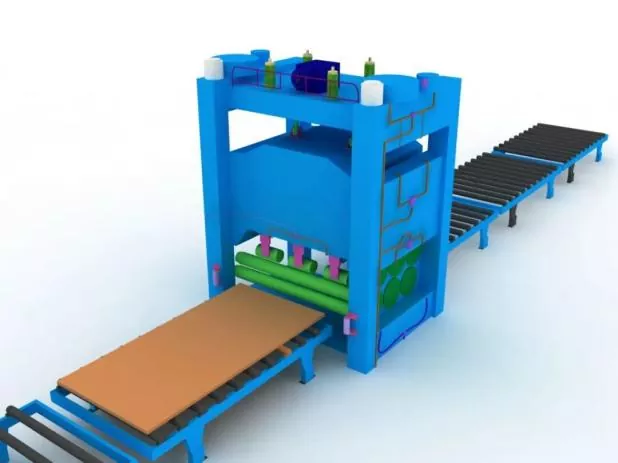

Gawo 2 Kuwongola mbale zachitsulo

Kuwongola kwathunthu kudzachitika pambuyo pa pretreatment zitsulo mbale kuonetsetsa blanking kulondola ndi kuthetsa kupsyinjika yotsalira mkati mwa mbale zitsulo.

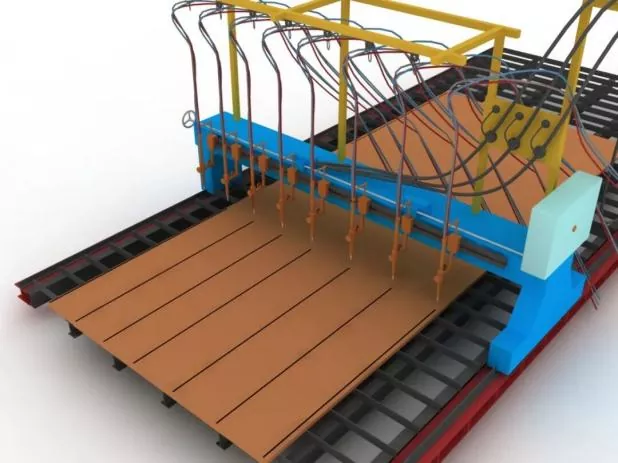

Gawo 3 Kudula ndi Kusatchula Magawo

Musanayambe kudula, sinthani makina odulira, tsimikizirani mtundu wa nozzle, ndikuwona kukhazikika kwa kuthamanga kwa mpweya.

Pa kudula, preheat kudula msoko wa mbale zitsulo poyamba, ndipo mosamalitsa kulamulira kudula liwiro.

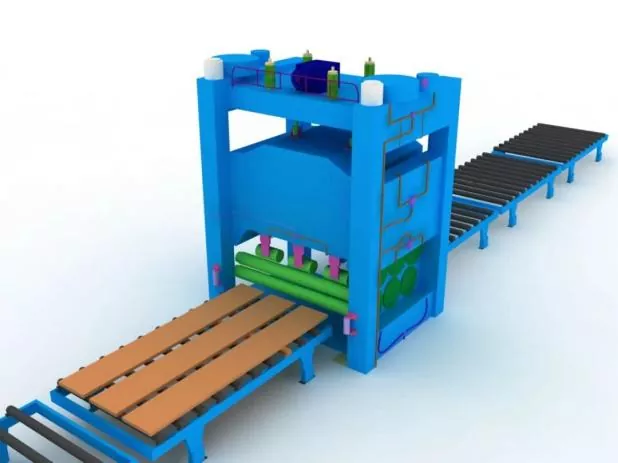

Khwerero 4 Kuwongoka Kwachiwiri kwa Magawo

Kuchitika pambuyo zitsulo mbale akusowekapo kuonetsetsa msonkhano molondola ndi kuchepetsa yotsalira kupsyinjika mkati mwa mbale zitsulo.

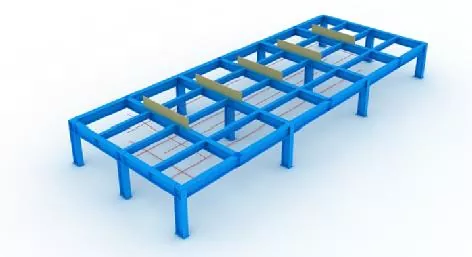

Khwerero 5 Kukhazikitsa kwa Jigs ndi Mizere Yamasanjidwe

Asanayambe kusonkhana, mizere ya masanjidwe ndi jigs ziyenera kukhazikitsidwa poyamba.

Pakuyika kwa jig, mulingo wopingasa wotsegulira pamwamba uyenera kutsimikiziridwa, ndipo kukhazikika kokwanira ndi mphamvu zidzatsimikizika.

Ma jig onse ndi mizere yamakonzedwe atha kugwiritsidwa ntchito atayang'aniridwa ndikuvomerezedwa ndi ogwira ntchito omwe asankhidwa.

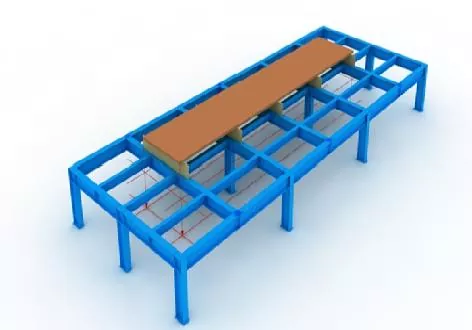

Gawo 6 Lower Panel Positioning

Zoyikidwa bwino ndi plumb bob ndi mizere yamasanjidwe.

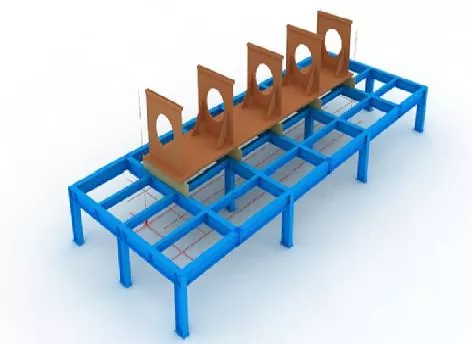

Gawo 7 Kusonkhana kwa Diaphragm

Musanasonkhanitse ma diaphragms, lembani mizere yoyika pansi, ndipo chotsani dzimbiri loyandama mbali zonse za mizereyo ndi gudumu lopera.

Ma diaphragms akamamangidwa, akonzeni ndi kuwotcherera.

Gawo 8 Web Assembly

Ukonde ukatha kulumikizidwa ndikuyenerera, ikani mwamphamvu pa diaphragm ndi jack, kenaka muikonze ndi kuwotcherera.

Khwerero 9 Kuphatikiza Pagulu Lapamwamba

Malizitsani kuyika kwapamwamba kwa gulu lapamwamba ndi plumb bob, kenako konzani ndi kuwotcherera kwa tack.

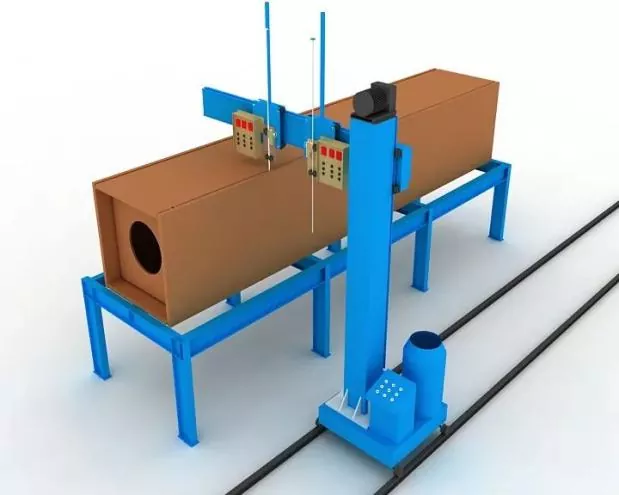

Gawo 10 Kuwotcherera kwa Diaphragm Electroslag

Kuwotcherera kwa electroslag kumbali imodzi kumatengera ma diaphragms.

Manja amkuwa a arc poyambira ndi kuzimitsa adzayikidwa pamiyendo yakumtunda ndi yotsika ya mabowo owotcherera a electroslag panthawi yowotcherera.

Kuwotcherera pakali pano ndi magetsi aziyendetsedwa mosamalitsa nthawi yonse yowotcherera, ndipo chidwi chidzaperekedwa pakuwunika kusintha kwa mtundu wa malo owotcherera a electroslag pa intaneti.

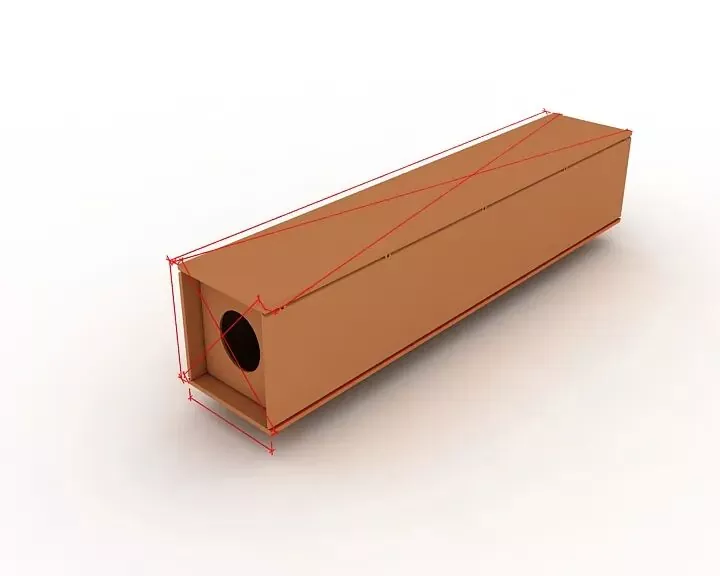

Khwerero 11 Kuyendera Kwathunthu

Pakuwunika, yang'anani pakuwona ngati kutalika kwa chigawocho, miyeso ya diagonal ndi miyeso ya gawo lakumapeto zikukwaniritsa zofunikira zamapangidwe ndi mawonekedwe, ndikuwongolera magawo onse osalolera.

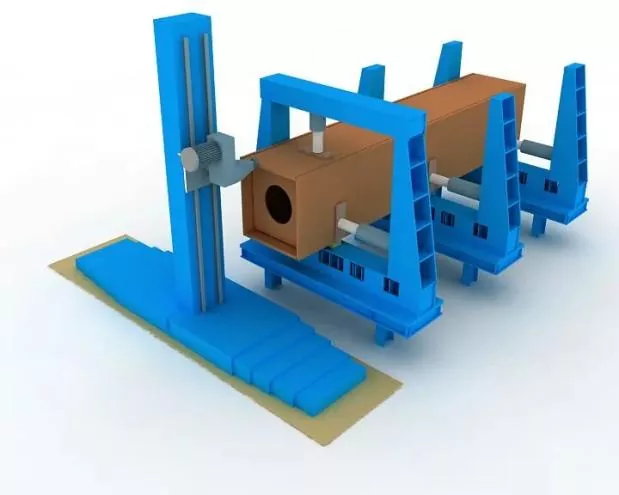

Khwerero 12 Malizeni Kugaya

Pewani kumapeto pambuyo pa msonkhano ndi kuwotcherera.

Tsimikizirani kuchuluka kwa mamembala ndi kufanana pakati pa nkhope yomaliza ndi chodula mphero.

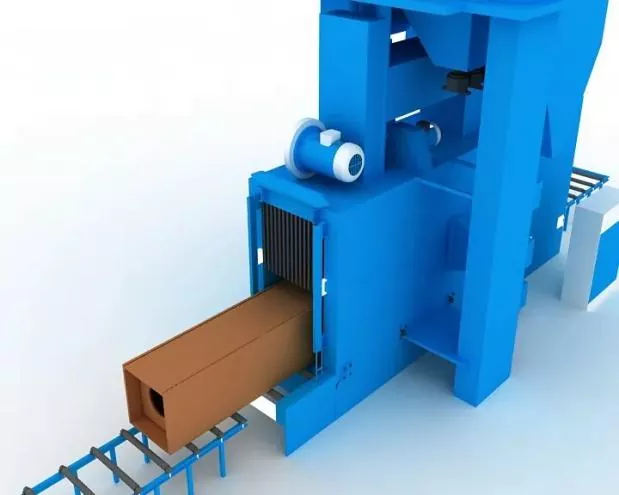

Gawo 13 Kuphulika kwa Mchenga ndi Kuchotsa Dzimbiri

Kuchotsa dzimbiri kwathunthu ndi kuphulika kwa mchenga monga momwe kumafunira mutatha kuwotcherera, kenaka tumizani ku zomangamanga.

Kulondola kwa msonkhano

Pamsonkhano:

● Zoletsa zoyenera zidzakhazikitsidwa kuti ziwongolere kusintha kwa kuwotcherera.

● Chilolezo cha kuwotcherera shrinkage ndi kusinthika koyenera kobwerera kudzasungidwa kuti ziwongolere kukula kwa zigawo ndikuwonetsetsa kuti kawonekedwe koyenera.

Mipatuko yovomerezeka pakupanga ndi kuphatikizira zolumikizira zowotcherera, komanso kulolerana kwapang'onopang'ono kwa zida zamapangidwe, zigwirizana ndi zofunikira za Code for Acceptance of Construction Quality of Steel Structures (GB 50205).

Assembly udindo kuwotcherera

Idzayendetsedwa ndi semi-automatic solid wire gas metal arc welding (GMAW).

Welder

Owotcherera omwe amawotchera ma tack tack amakhala ndi ziphaso zofananira zomwe zafotokozedwa mu Technical Specification for Welding of Building Steel Structures(JGJ81).

Malo a tack welds

Malo a ma welds: Tack welds amapewa kuyambika ndi kutha kwa ma welds okhazikika, ndipo sadzayikidwa pamakona, m'mphepete, kumapeto ndi madera ena ovuta omwe amatha kukhala ndi mphamvu zamapangidwe ndi zolakwika zamapangidwe.

Kwa ma T-joint, kuwotcherera kwa tack: Zichitika molingana mbali zonse; panthawiyi, kuwotcherera mkati mwa groove kupewedwe momwe mungathere.

Kuti kuwotcherera kolowera kolowera: Kuwotcherera kwa Tack kudzachitidwa pa poyambira pobowola msana, mwachitsanzo, kubweza kumbuyo.

Malo opangira ndi kuwotcherera a mbale zowotcherera zowotcherera komanso mbale zothamangira ndi zothamangira ziyenera kutsatira miyezo yoyenera.

Zida zowotcherera

Zipangizo zowotcherera zomwe zimagwiritsidwa ntchito polumikizira ndi kuwotcherera zingwe ziyenera kukhala zogwirizana ndi zowotcherera zokhazikika, mwachitsanzo, zida zowotcherera zomwezo monga zowotcherera zovomerezeka zidzalandiridwa.

Kwa kuwotcherera msonkhano pakati pa chitsulo champhamvu kwambiri ndi chitsulo chochepa kwambiri, zipangizo zowotcherera zidzasankhidwa malinga ndi kalasi yachitsulo chochepa.
