Thermal Power Plant Steel Frame

Thermal Power Plant Steel Frame ndi dongosolo lachitsulo lonyamula katundu lomwe limapangidwira makamaka zopangira magetsi otentha, zomwe zimagwiritsidwa ntchito kuthandizira zida zolemetsa monga ma boilers ndi seti ya turbo-generator, komanso kugwira ntchito ngati chimango chanyumba zazikulu. EIHE Steel Structure (EHSS) ndi wopanga zitsulo zopangidwa ndiukadaulo wapamwamba. Tili ndi chidziwitso pamapulojekiti amagetsi a nyukiliya, omwe amakwaniritsa miyezo yokhazikika yamagetsi opangira magetsi.

Tumizani Kufunsira

Mafotokozedwe Akatundu

Thermal Power Plant Steel Frame imakhala ndi zigawo zazitsulo ndi zitsulo, zomwe zimagwiritsidwa ntchito ngati chonyamulira cha zomangamanga ndi kuyika zida m'mafakitale amagetsi otentha. Zogulitsa zopangidwa ndi fakitale yathu zimakhala ndi zabwino zambiri monga mphamvu zambiri, kudzilemera kwapang'onopang'ono, zivomezi zabwino kwambiri komanso kukana kwa mphepo, komanso zinthu zosaphulika komanso zosawononga dzimbiri.

Zopangira zathu zachitsulo zimagwiritsidwa ntchito makamaka muzinthu ziwiri zazikuluzikulu.

▷ Kapangidwe kachitsulo ka boiler: chitsulo chodziyimira pawokha chomwe chimagwiritsidwa ntchito kuyimitsa ndikuthandizira zida zazikulu.

▷ Main mphamvu nyumba zitsulo dongosolo: nyumba yaikulu dongosolo malawi mayunitsi turbo-jenereta, zipinda zolamulira ndi zipangizo zina.

Thermal Power Plant Steel Frame

Zomera zamagetsi zotentha zimakhala ndi zofunikira zapadera potengera zinthu, mapangidwe ndi chitetezo. Kuti mukwaniritse miyezo yapamwamba ya machitidwe awiriwa, EHSS imasankha zitsulo zamtengo wapatali ndipo imayika kufunikira kwakukulu kwa mapangidwe amoto ndi odana ndi dzimbiri kuti mumange Chitsulo chanu cha Thermal Power Plant Steel Frame.

Chophimba Choteteza Moto	Kupaka makulidwe	Moto Resistance Limit	Mawonekedwe	Zochitika za Ntchito
Intumescent	<5mm	1.5-2.0 maola	Ndi yosalala pamwamba ndi zina kukongoletsa kwenikweni	Ntchito zamkati kapena ma projekiti okhala ndi zokongoletsa
Zopanda intumescent	> 10 mm	2.0-3.0 maola	Pamwamba molimba ndi kukhazikika bwino	Ntchito zakunja kapena malo owopsa kwambiri

Kupaka kwa Anticorrosive	Kupaka makulidwe	Ntchito Yoyambira	Gulu
Epoxy Zinc Wolemera Kwambiri	70-80μm	Chitetezo cha Cathodic	Woyambira wosanjikiza
Epoxy Micaceous Iron oxide Intermediate Coat	80-125μm	Chotchinga chotchinga	Wosanjikiza wapakatikati
Chovala Chapamwamba cha Polyurethane / Fluorocarbon Top Coat / Utoto wa Mpira wa Chlorinated	60-80μm	Kukana kwanyengo, kukana zofalitsa ndi kukongoletsa	Pamwamba wosanjikiza

Thermal Power Plant Steel Frames amafunikira njira zotetezera zosiyanasiyana pazochitika zosiyanasiyana, chifukwa cha mitundu yosiyanasiyana ya malo omwe ali pachiwopsezo chachikulu omwe amapezeka m'mafakitale opangira magetsi otentha.

Ntchito Scenario	Mawonekedwe	Coating System	Kunenepa Kwambiri
Indoor Main Power Plant Building	C3 Chilengedwe	Epoxy Zinc-rich Primer (60μm) + Epoxy Micaceous Iron Oxide Intermediate Coat (80μm) + Polyurethane Top Coat (80μm)	≥220μm
Panja Boiler Steel Frame	Chilengedwe cha C5-M	Epoxy Zinc-rich Primer (80μm) + Epoxy Micaceous Iron Oxide Intermediate Coat (120μm) + Fluorocarbon Top Coat (100μm) + Filimu Yokhuthala Yotchingira Moto	≥300μm
Njira Yoyendetsera Malasha	Kutentha Kwambiri / Abrasion	Epoxy Zinc-rich Primer (75μm) + Chovala Chapakatikati Chomangika cha Epoxy (150μm) + Chovala Chapamwamba Chosamva Abrasion (100μm)	≥325μm
Flue Duct / Condensation Zone	Asidi Wamphamvu	Kutentha Kwambiri Kusamva Phenolic Epoxy Primer (100μm) + Phenolic Epoxy Flake Coating (200μm)	≥300μm

Njira Yoyenda

Zogulitsa zathu za Thermal Power Plant Steel Frame zimaperekedwa kudzera munjira zazikulu zisanu:

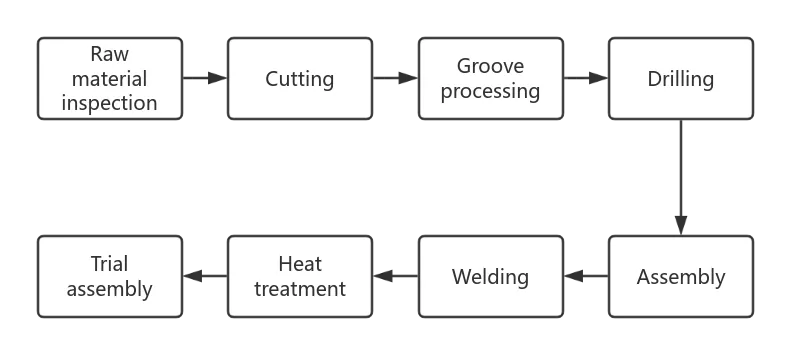

1. Kupanga

Fabrication

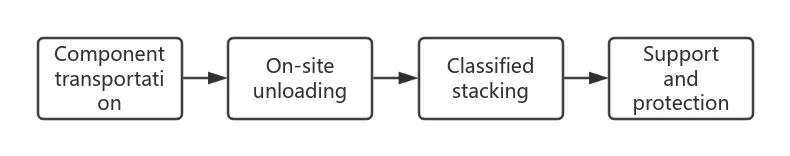

2. Mayendedwe & Kusungirako

Transportation & Storage

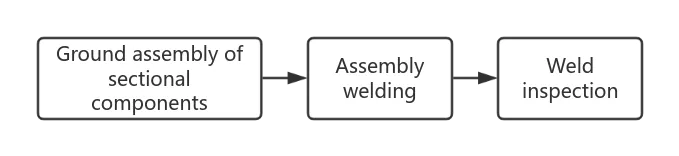

3. Pamalo Msonkhano

On-site Assembly

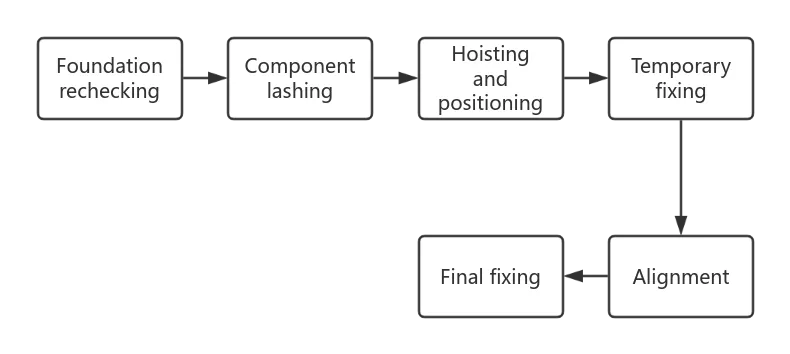

4. Hoisting & Kuyika

Hoisting & Installation

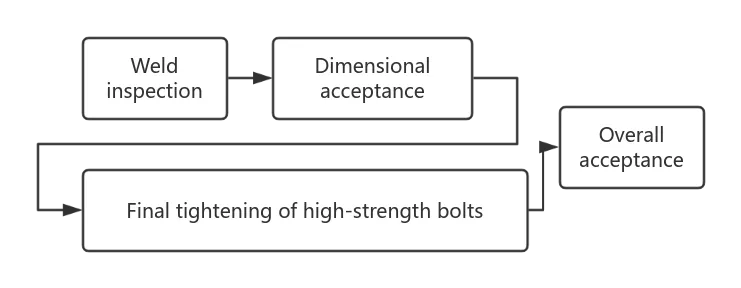

5. Kuvomereza Kwabwino

Quality Acceptance

Mukamaliza kuchita izi, Thermal Power Plant Steel Frame yanu ikhala yokonzeka kugwira ntchito pafupifupi miyezi iwiri kapena itatu.
